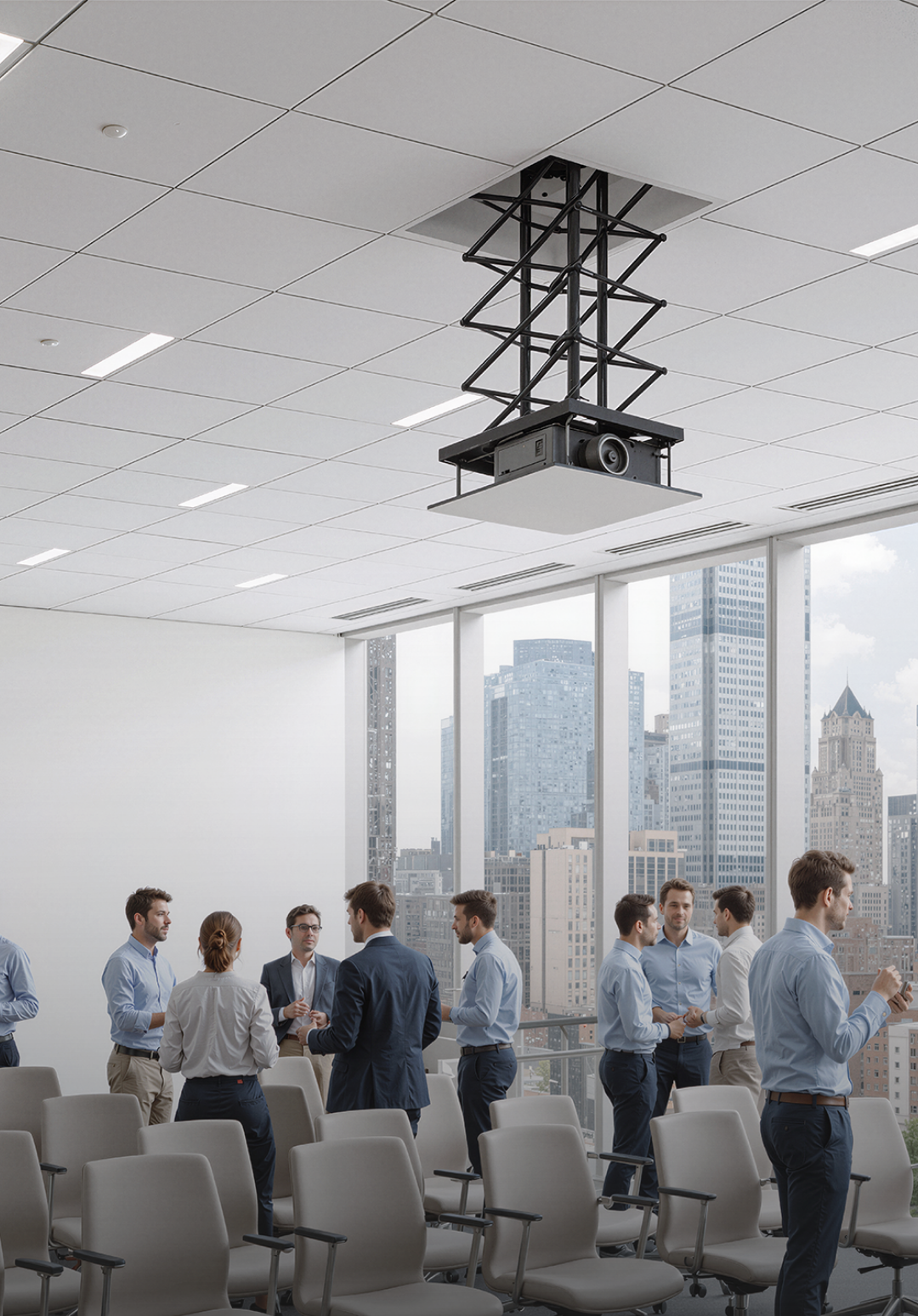

Projector Ceiling Lift PLCV7.1-1500

• Maximum load capacity 50kg  (≥projector+ceiling cover)
• Maximum drop down distance (for service position) 1500mm
• Providing 3 stop positions:
  • UP/CLOSED:  adjustable
  • Down-A/PROJECTION: adjustable
  • Down-SERVICE
• Cable trail and fixing points at one side
• 4 pulley belts motion system
• Removable projector plate for easiest projector installation and easy retraction for service or change.
• Detachable control box with 2meters connection cable.
• Standard color of metallic parts: RAL 9005 black
• Optional RAL color selection: up on request

• Maximum load capacity 50kg  (≥projector+ceiling cover)
• Space inside carriage for projector (WxL) 615x750mm
• Lift dimensions (WxDxH) 835mm x 895mm x 230mm+projector height (not including ceiling cover pitch)
• Maximum drop down distance (for service position) 1500mm
• Providing 3 stop positions:
  • UP/CLOSED:  adjustable
  • Down-A/PROJECTION: adjustable
  • Down-SERVICE
• Cable trail and fixing points at one side
• 4 pulley belts motion system
• Removable projector plate for easiest projector installation and easy retraction for service or change.
• Detachable control box with 2meters connection cable.
• Standard color of metallic parts: RAL 9005 black
• Optional RAL color selection: up on request
• Default control method: dry contacts control box
• Optional controls: RF remote control, RS 232 port on ex-ternal control box
• Power supply: 230VAC

• PLC V7.1-1500 SPECS 02.pdf
• PLCV7.1_-_closed_v062024.pdf
• PLCV7.1_-_open_v062024.pdf
• PLCV7.1_-_ceiling_details_v062024.pdf
• PLCV7.1_-_ceiling_details_closed_v062024.pdf
