Flat panel swiveling wall mount (motorized) FPWMR-MV8

FPWMR-MV8

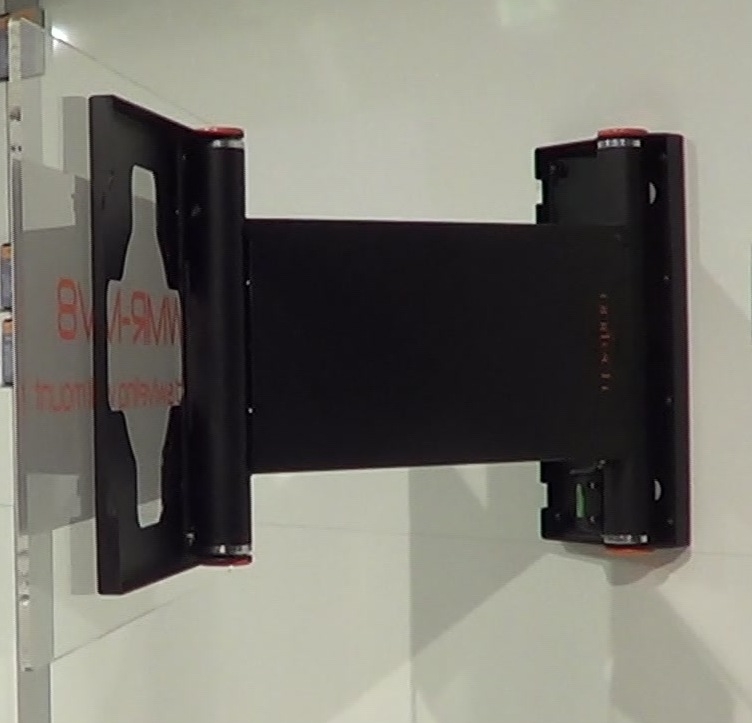

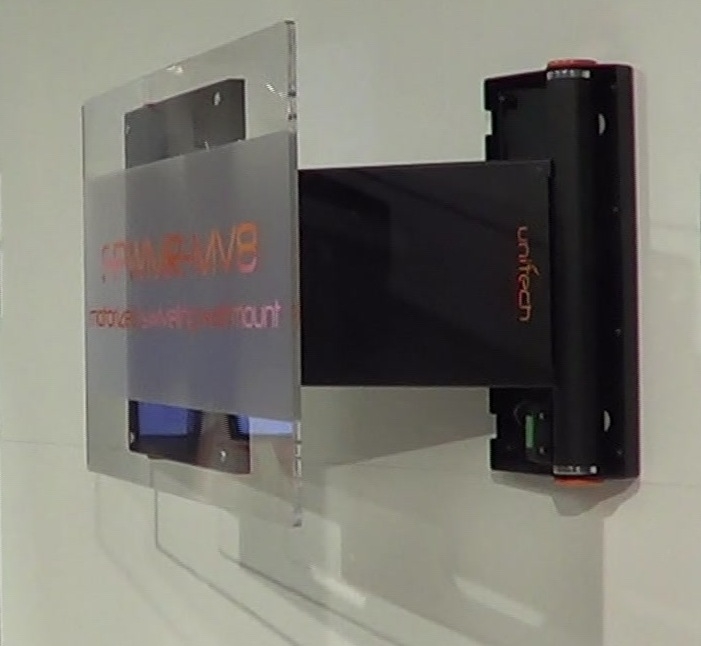

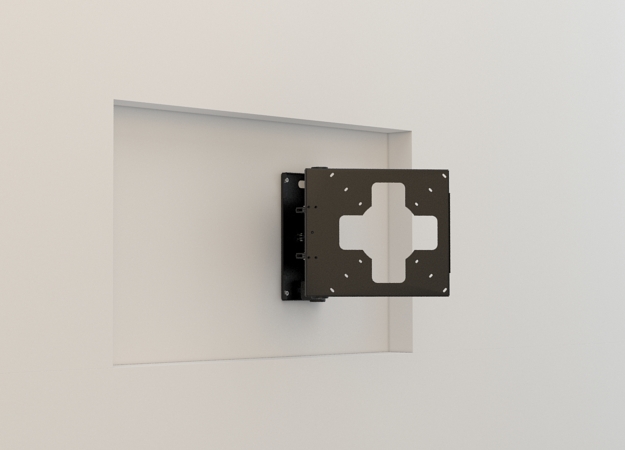

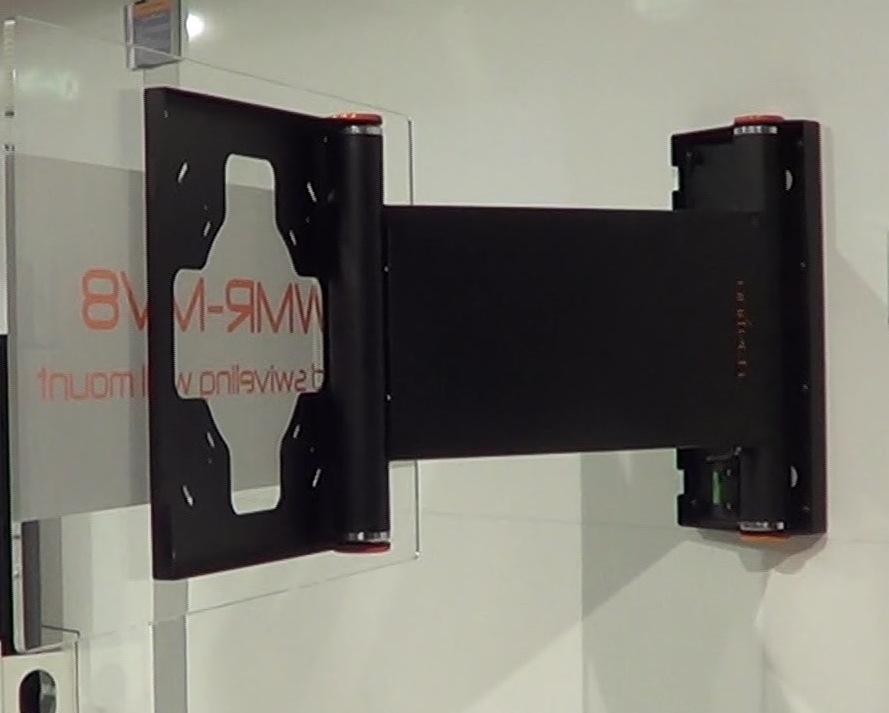

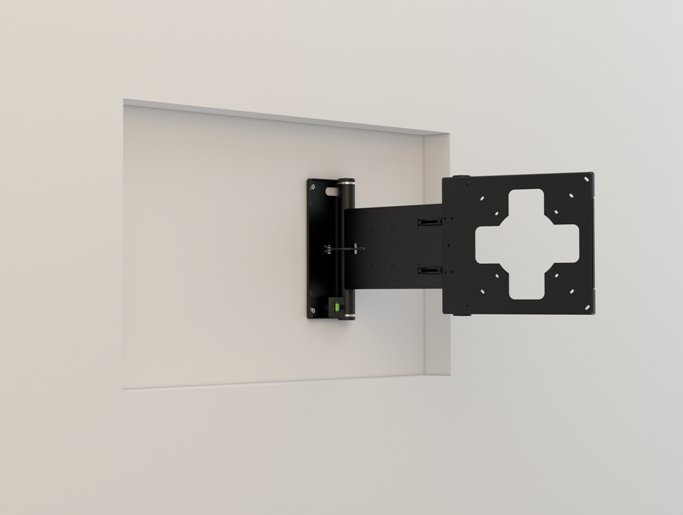

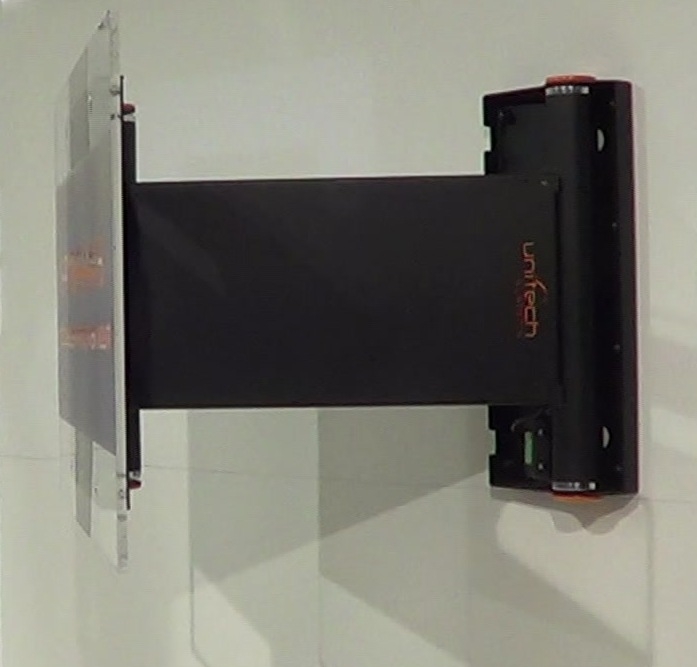

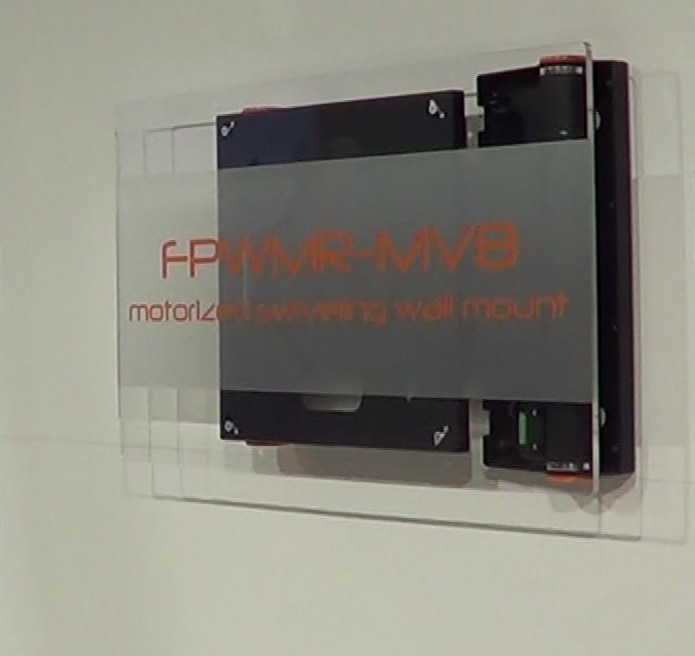

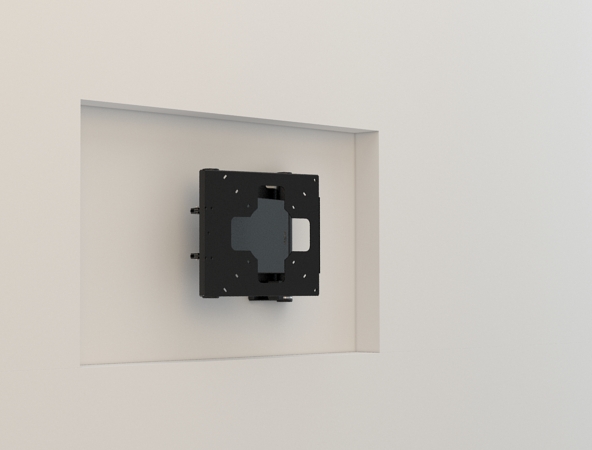

Motorized swiveling wall mount, with articulated motion, for flat panels from 40" up to 65". Silent operation with swiveling angle up to 70degrees. Suitable for wall hatches and for maximum load up to 50kg.

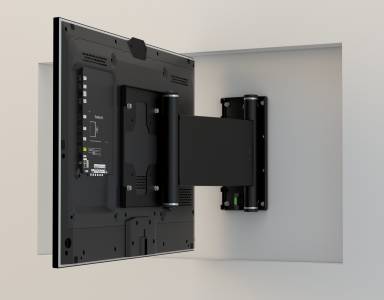

Fpwmr Mv8 Main Image
Fpwmr Mv8 Main Image

Features

Specifications

  • one direction motorized swiveling (determined at ordering point) up to 70degrees angle
  • suitable for flat panels from 40" up to 65" (maximum width 1550mm)
  • extension from wall 790mm (tv center from wall surface)
  • invisible to the viewer cable routing
  • low operation noise level <40db!
  • maximum load capacity up to 50kg
  • vesa compatible 200x200mm, 300x300mm & 400x400mm
  • optional accessories for bigger vesa mounting patterns
  • powder coating in black color (RAL9005)
  • standard dry contacts control option
  • optional : RF remote control, RS232/485 ports
