Projector Ceiling Lift PLCV5.2

PLC V5.2

Low profile Ceiling Lift suitable for false ceilings with small inner height and maximum load capacity 20kg (projector+ceiling cover, where ceiling cover cannot exceed 5kg). PLC V5.2 is characterized by excellent utilty, great stability and great accuracy in up and down position. Ideal for use in false ceilings with tile dimensions ≥600x600mm.

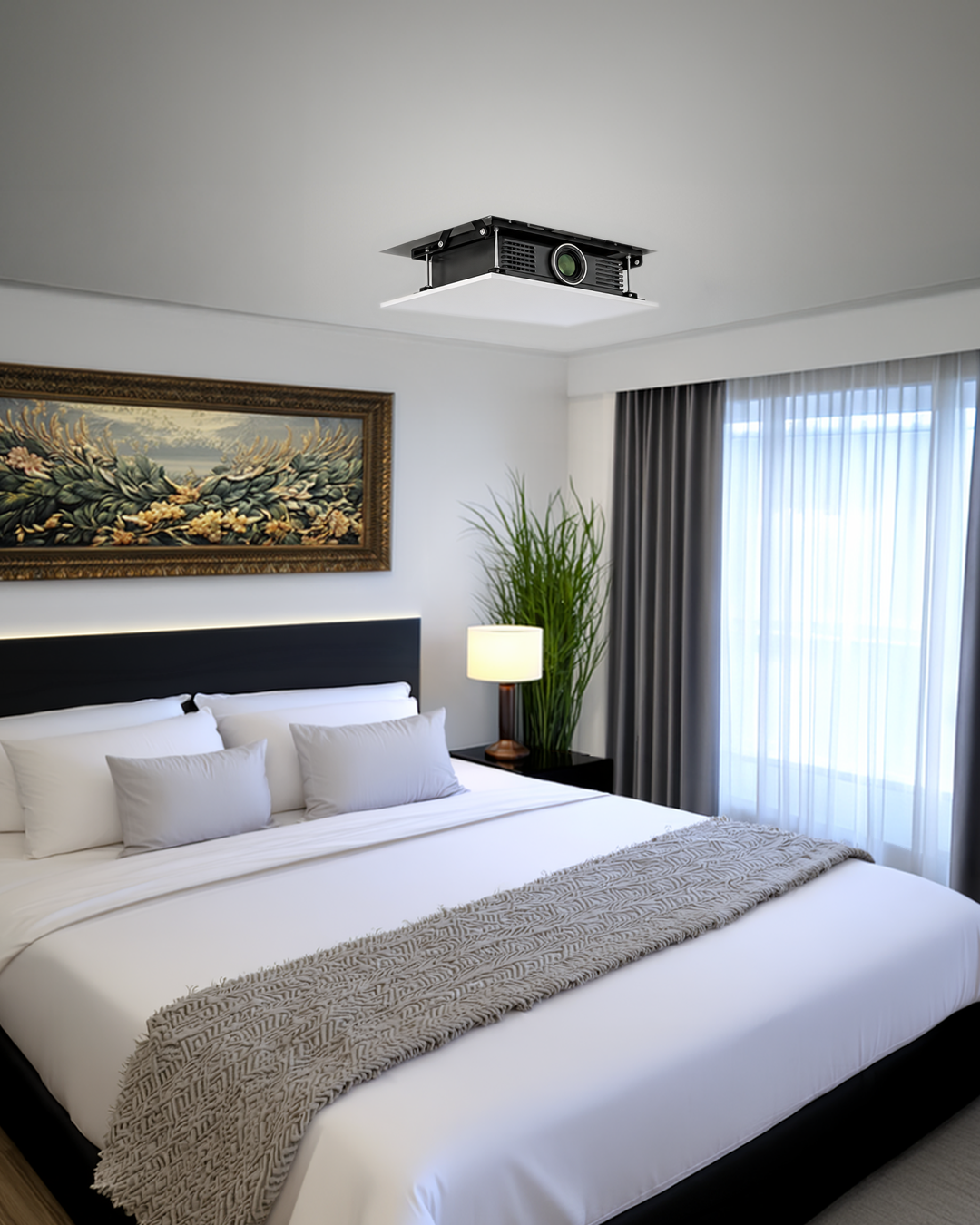

Plc V5 2 Main Image
Plc V5 2 Main Image



  • Maximum load capacity (projector+ceiling cover) up to 20kg (ceiling cover cannot exceed 5kg)
  • Maximum projector dimensions within the lift size (WxD) ≤420x440mm
  • Lift dimensions (WxHxD):
    • 526x(71+projector height for max.projector dept <345mm)x440mm
    • 526x(105+projector height for max.projector dept >345mm)x440mm
  • Lift weight: ~15kg
  • Minimum ceiling hole required: 560x480mm
  • Standard run length:
    • 166mm for max.projector dept >345mm
    • 200mm for max.projector dept <345mm
  • Optional run length increase by +200mm each time, for maximum 2 times, with lift height increase by 42mm each time
  • Power supply 230VAC/50Hz
