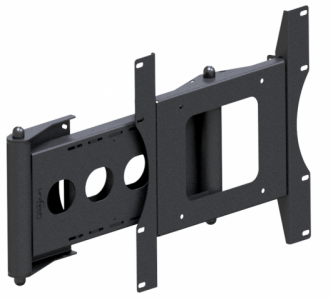

Flat panel swiveling wall mount with tilt - FPWMRT-VESA-400X400

• full flat panel swivel by +/-90^o
• full mount rotation from wall by 0-180^o
• arm length adjustment from 395mm up to 570mm, during installation phase
• maximum load 25kg
• minimum TV width in order to hide mount 790mm
• TV width (for full rotation ability) from up to 1100mm
• suitable for vesa mounting from 200x200mm up to 400x400mm
• concealed cable routing
• absolute stability & safety in use
• tilt adjustment by the user up to +7^o/-1^o
• easy installation
• high quality product with excellent utility at all times
• color black mat
• mount weight ~8kg

• FPWMRTVesa_400x400_v2022.pdf
• FPWMRTVesa_400x400_open_v2022.pdf
