Flat panel swiveling wall mount (motorized) FPWMR-MV7

FPWMR-MV7

Motorized swiveling wall mount for flat panels from 40" up to 60". Silent operation with swiveling angle up to 90degrees and maximum load up to 80kg!

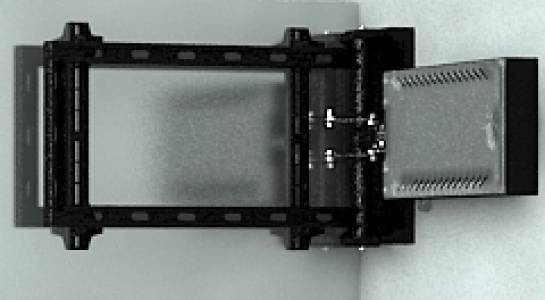

Fpwmr Mv7 Main Image
Fpwmr Mv7 Main Image

Features

Specifications

    • one direction motorized swiveling (determined at ordering point) up to 90degrees angle *
    • suitable for flat panels from 40" up to 60"
    • invisible to the viewer cable routing
    • low operation noise level <40db!
    • maximum load capacity up to 80kg!
    • vesa compatible from 100x100mm up to 600x400mm
    • optional accessories for bigger vesa mounting patterns
    • powder coating in black color (RAL9005)
    • standard dry contacts control option
    • optional : RF remote control, RS232/485 ports



*: In order for the mount to reach 90degrees, part of it must exceed the width of the flat panel by 6mm. For applications where the mount is completely hidden behind the flat panel in closed position, the flat panel must be flashed against the side of the mount and the maximum opening angle is 85degrees.
