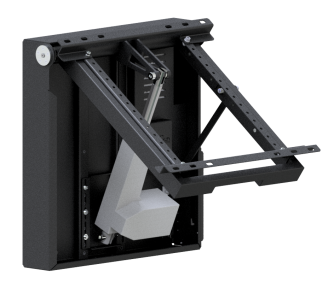

Flat panel electric tilt wall mount (motorized) FPWM-ET-V1

FPWM-ET-V1

FPWM-ET-V1 motorized wall mount is manufactured for flat panel fixed installation on wall, for indoor use. It provides vertical tilt.

Fpwm Et V1 01
Fpwm Et V1 01

Features

  • providing electric tilt ability up to 50degrees
  • maximum load capacity 30kg
  • compatible for vesa mounting up to 400x400mm

Specifications

Maximum load capacity

30kg

Suitable for maximum vesa

400x400mm

Mount’s profile

120mm

Maximum motorized tilt angle

50o

Suitable for  installation on firm wall surface, inclined to vertical axis at angle < 45o

Mount weight

~20kg

Standard color of metallic parts

powder coating in RAL 9005 black or RAL 9016 white

Power supply

110-230VAC

Standard control option

Embedded dry contacts control box (contact closures)

Optional controls

RF remote control, RS 232 ports on external control box (each one alternative to the other)

Manuals

Only for Registered Users

FPWM ET V1 01
