Flat Panel Floor Stand FPFS V21

FPFS-V21

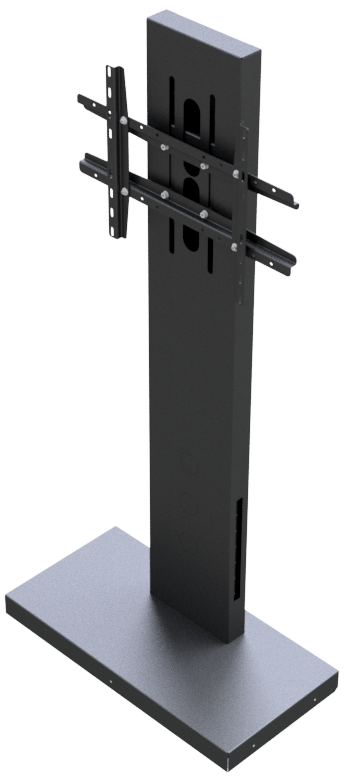

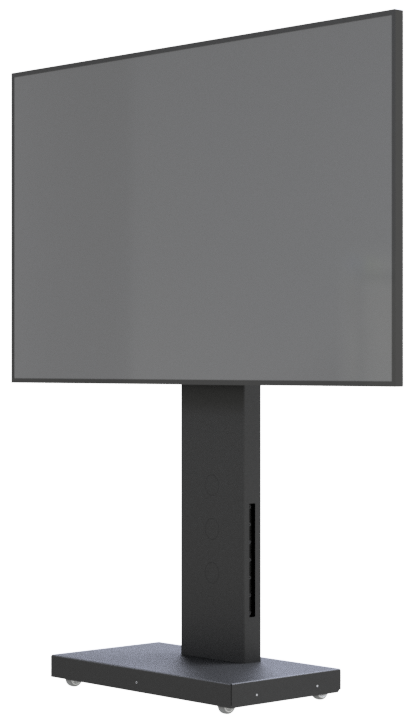

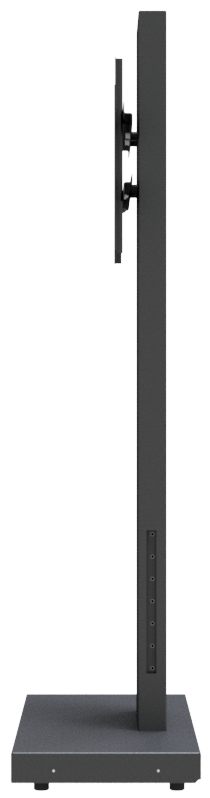

Flat panel floor stand, with maximum load capacity up to 50kg, completely hidden cable routing and compact design, characterized by high quality and utility. It can be equipped with rotating wheels and equipment shelves

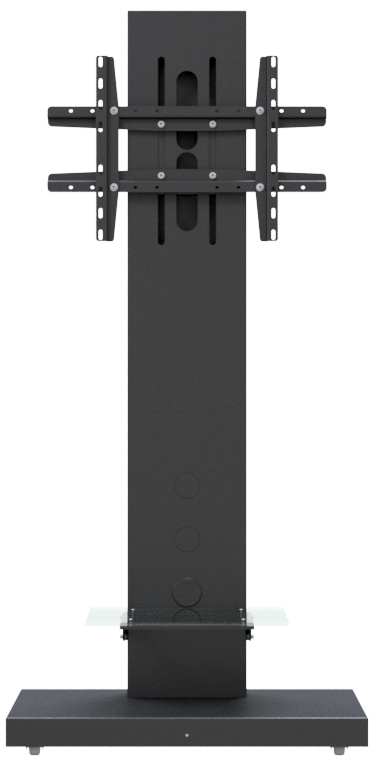

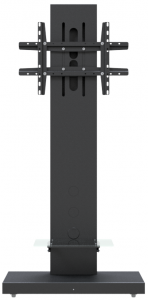

Fpfsv21 01Wheelsshelf Front
Fpfsv21 01Wheelsshelf Front

Features

  • completely hidden cable routing
  • column of fixed height
  • adjustable by height center of monitor's vesa positioning
  • adjustable vesa mounting
  • easy convertion from landscape to portrait applications
  • with optional additional accessories

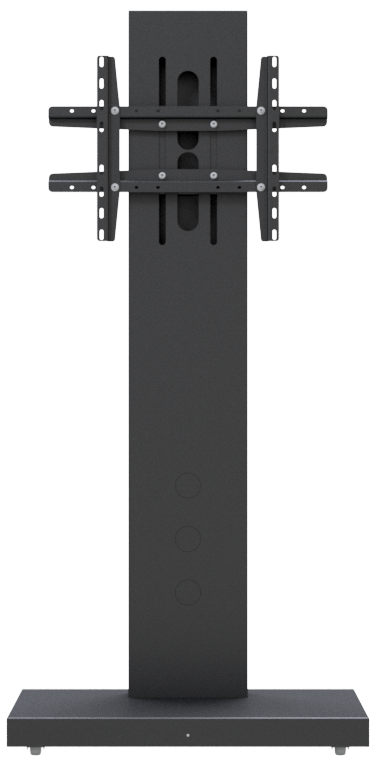

    • wheels
    • equipment shelves
  • standard powder coat coloring: black RAL9005

Specifications

  • total mount height 1700mm
  • center of vesa at 1370mm +/-150mm adjustment possibility
  • maximum load capactiy 50kg
  • suitable for vesa from 200x200mm up to 600x400mm

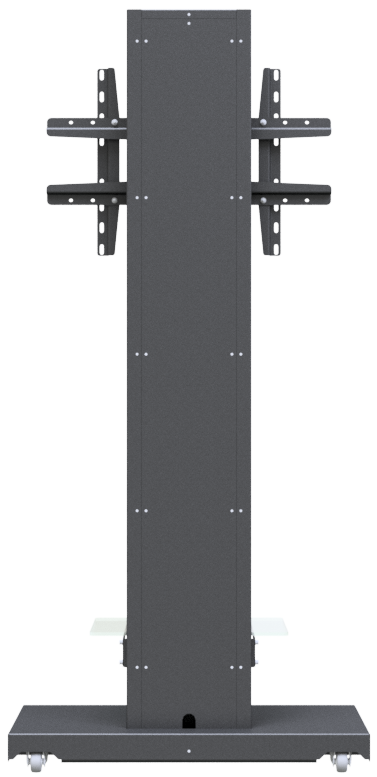

  • optional up to 3 equipment shelves, of 8kg maximum load each

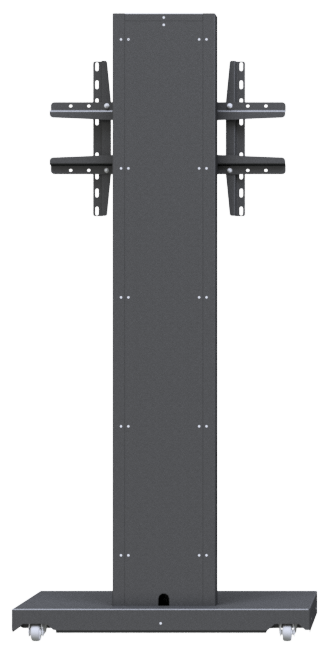

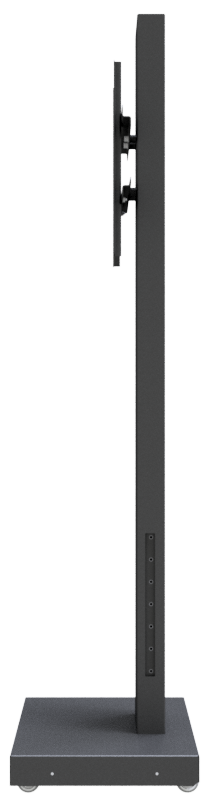

  • optional hidden rotating wheels
