Universal flat panel ceiling mount FPCMRT V4-400

FPCMRT V4-400

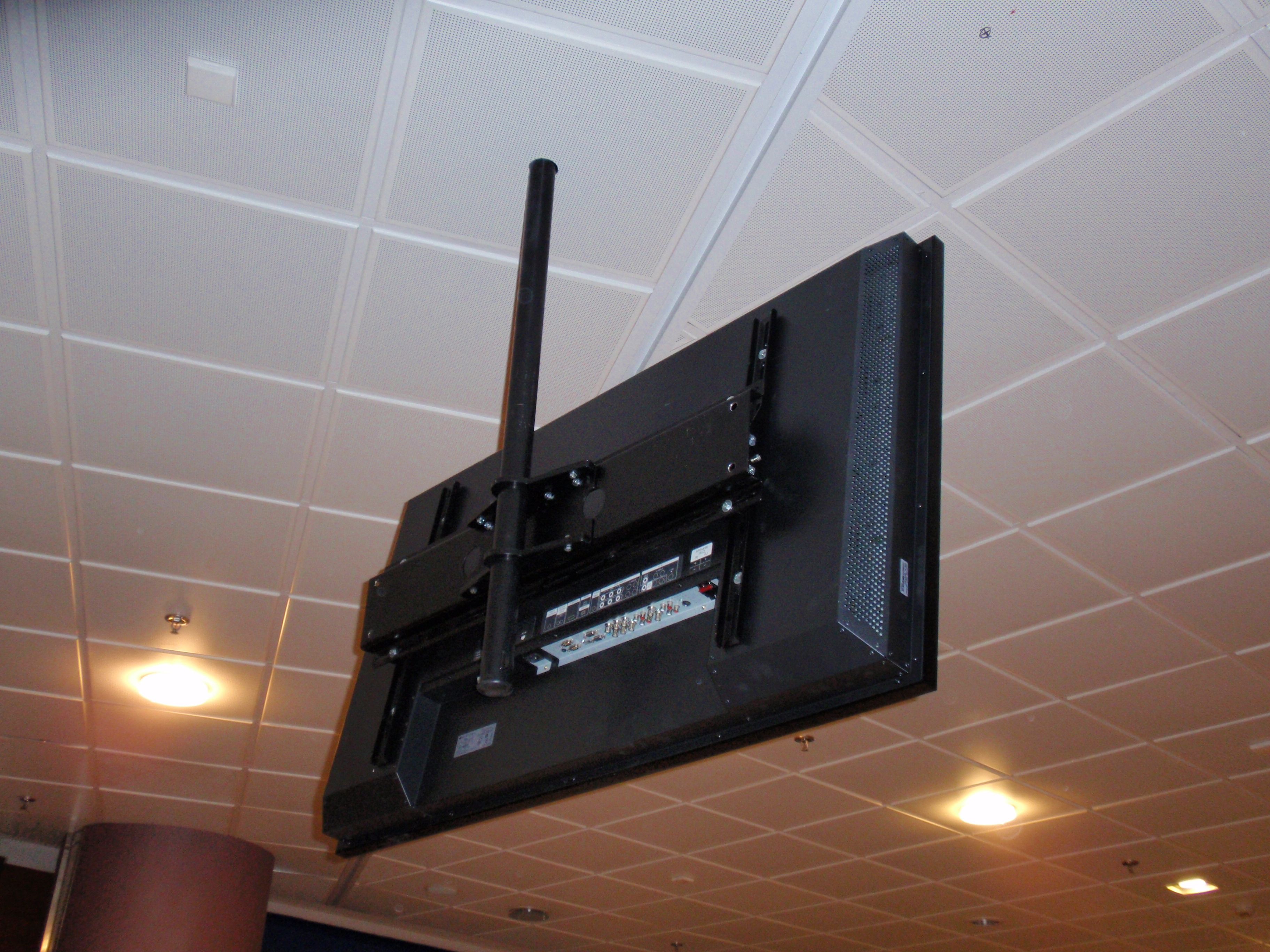

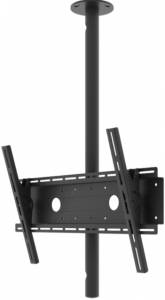

Universal flat panel ceiling mount type FPCMRT V4-400, with 20o tilt, rotation and height adjustment ability during installation.

Fpcmrt V4 400 Main Image
Fpcmrt V4 400 Main Image

Features

  • Maximum mount tilt 20o
  • Suitable for flat panels with mounting vesa up to 400x400mm
  • Mount width 495mm
  • Standart tube heights 1m, 1.5m & 2m
  • Maximum load 40kg
  • Height adjustment and rotation ability during installation
  • Cable routing inside the tube
  • Firm construction for absolute stability
  • Easy installation and mounting & dismounting of flat panel
  • Color black mat

Optional

  • Double panel mounting
  • Ceiling tubes of special dimensions and features
  • Accessory for manual rotation ability after installation
Specifications

  • Maximum mount tilt 20o
  • Universal mounting vesa up to 400x400mm
  • Mount width 495mm
  • Standart tube heights 1m, 1.5m & 2m
  • Maximum load 40kg
  • Color black mat

Optional

  • Double panel mounting
  • Ceiling tubes of special dimensions and features
  • Accessory for manual rotation ability after installation
