Flat panel table lift FPLTR V3-800

FPLTR V3-800

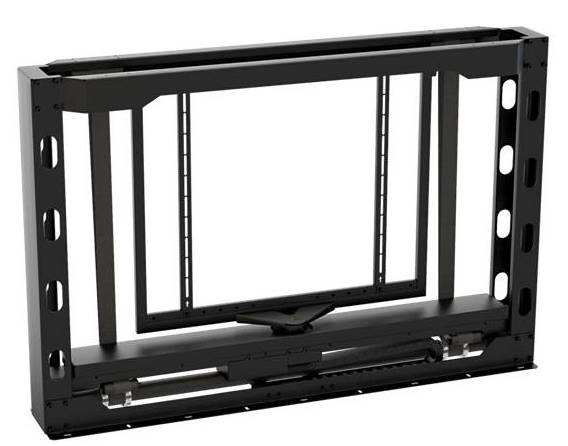

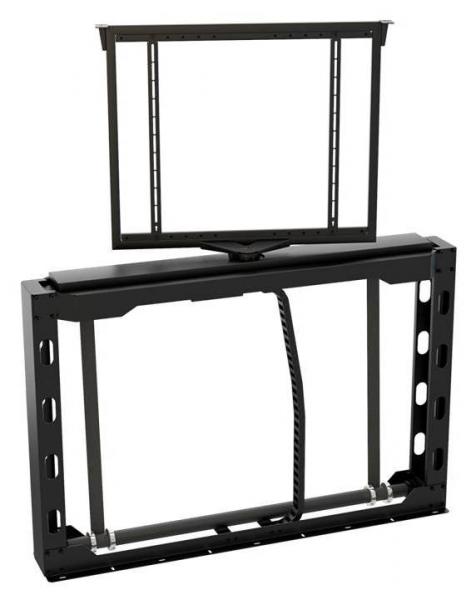

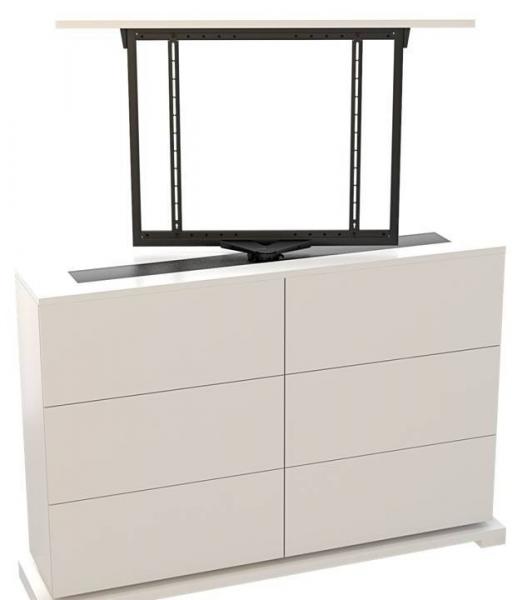

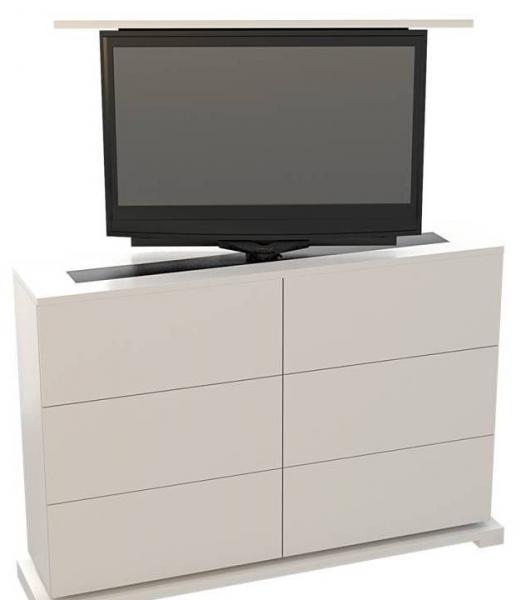

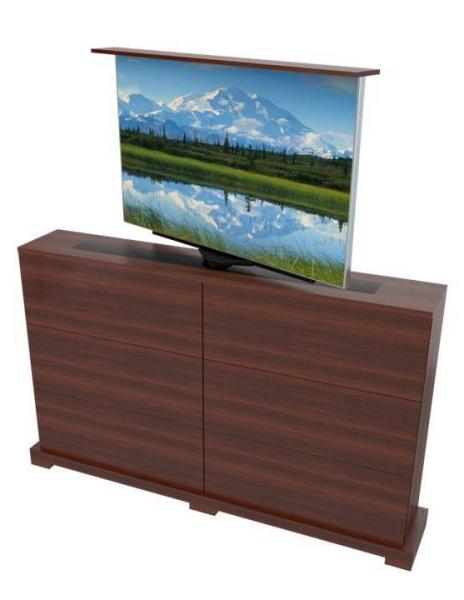

Flat panel table lift, type FPLTR V3-800, with automatic panel swivelling by 300o.

Fpltr V3 800 Main Image
Fpltr V3 800 Main Image

Features

  • maximum flat TV dimensions (WxHxD): 1330x750x110mm
  • maximum elevation height (flat panel height + furniture cover pitch): 800mm
  • one direction electric swivel of flat panel up to 300ο
  • maximum load capacity (flat panel+furniture cover): 35kg
  • lift outer dimensions (WxHxD): 1515x1000x260mm
  • lift weight: ~70kg
  • TV mounting hole pattern: 800x400mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included

Specifications

  • maximum flat TV dimensions (WxHxD): 1330x750x110mm
  • maximum elevation height (flat panel height + furniture cover pitch): 800mm
  • one direction electric swivel of flat panel up to 300ο
  • maximum load capacity (flat panel+furniture cover): 35kg
  • lift outer dimensions (WxHxD): 1515x1000x260mm
  • lift weight: ~70kg
  • TV mounting hole pattern: 800x400mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included
  • standard control method dry contacts
  • optional controls: RF remote control, RS 232 control board ports (each one alternative to the other)
