Flat panel table lift FPLTR V3-700

FPLTR V3-700

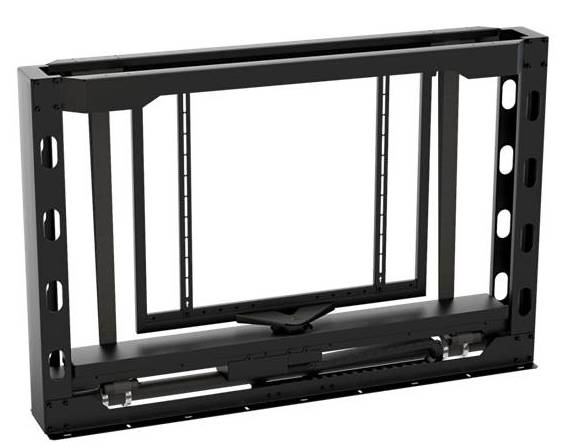

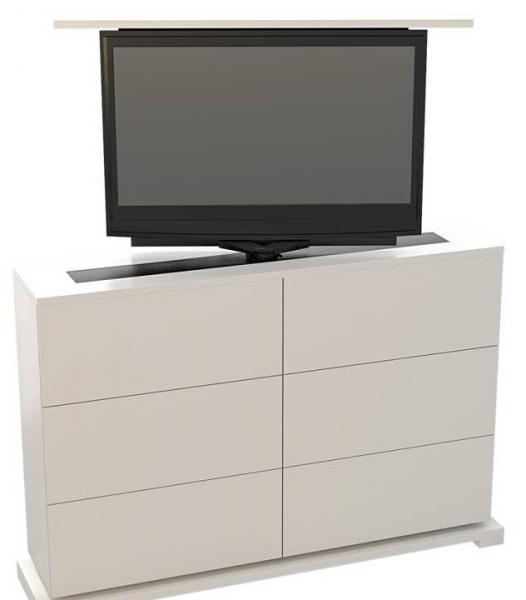

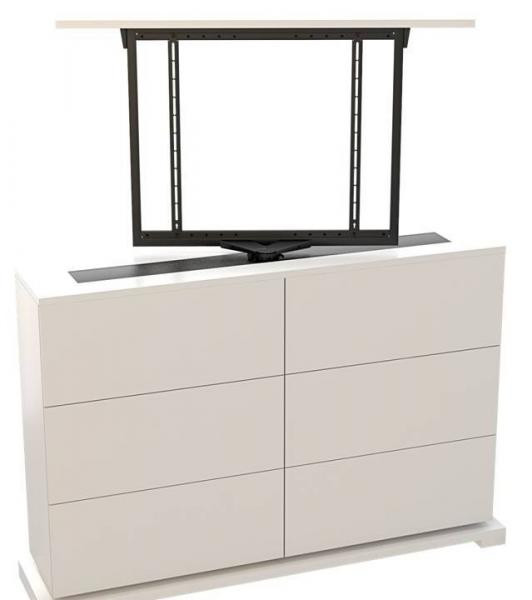

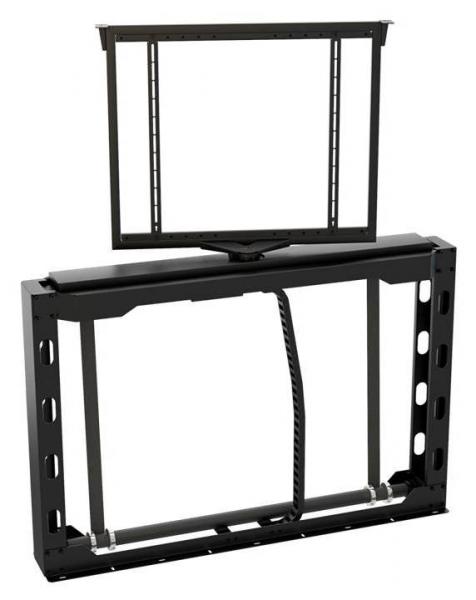

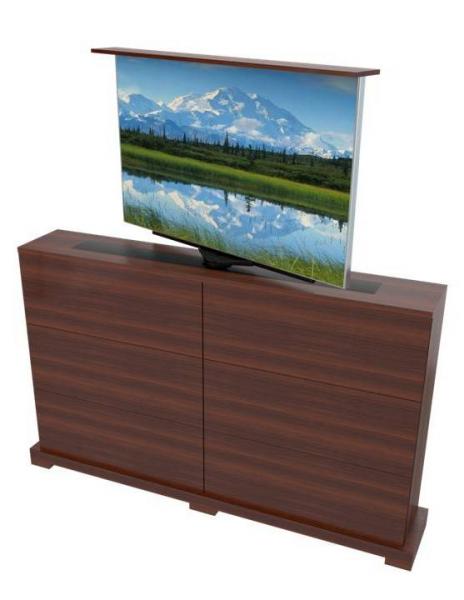

Flat panel table lift, type FPLTR V3-700, with automatic panel swivelling by 300o.

Fpltr V3 700 Main Image
Fpltr V3 700 Main Image

Features

  • maximum flat TV dimensions (WxHxD): 1230x650x110mm
  • maximum elevation height (flat panel height + furniture cover pitch): 700mm
  • one direction electric swivel of flat panel up to 300ο
  • maximum load capacity (flat panel+furniture cover): 30kg
  • lift outer dimensions (WxHxD): 1415x900x260mm
  • lift weight: ~65kg
  • TV mounting hole pattern: 600x400mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included

Specifications

  • maximum flat TV dimensions (WxHxD): 1230x650x110mm
  • maximum elevation height (flat panel height + furniture cover pitch): 700mm
  • one direction electric swivel of flat panel up to 300ο
  • maximum load capacity (flat panel+furniture cover): 30kg
  • lift outer dimensions (WxHxD): 1415x900x260mm
  • lift weight: ~65kg
  • TV mounting hole pattern: 600x400mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included
  • standard control method dry contacts
  • optional controls: RF remote control, RS 232 control board ports (each one alternative to the other)
