Flat panel table lift FPLT V2 52-60

FPLT V2 52-60

Flat panel table lift, type FPLT V2 52-60, with opening angle by 100o. The flat panel is stored in horizontal position.

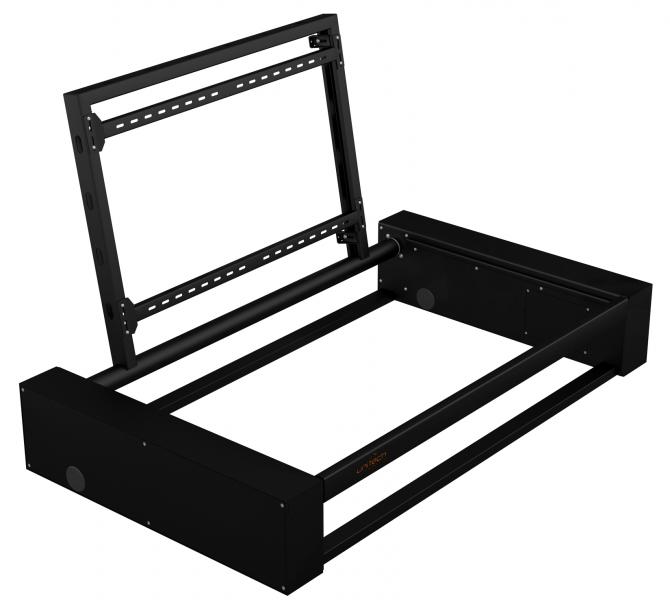

Fplt V2 52 60 Main Image
Fplt V2 52 60 Main Image

Features

  •  maximum flat TV dimensions (WxHxD): 1480x900x100mm
  • maximum load capacity (flat panel+furniture cover): 45kg
  • lift outer dimensions (WxHxL): 1821x250x1084mm
  • lift weight: ~84kg
  • Maximum swiveling angle 100 degrees
  • TV mounting hole pattern: 800x600mm
  • powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
  • cable management system included

Specifications

  •  maximum flat TV dimensions (WxHxD): 1480x900x100mm
  • maximum load capacity (flat panel+furniture cover): 45kg
  • lift outer dimensions (WxHxL): 1821x250x1084mm
  • lift weight: ~84kg
  • Maximum swiveling angle 100 degrees
  • TV mounting hole pattern: 800x600mm
  • powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
  • cable management system included
  • standard control method dry contacts
  • optional controls: RF remote control, RS 232 control board ports (each one alternative to the other)
