Flat panel table lift FPLT V2-500 52-60

FPLT V2-500 52-60

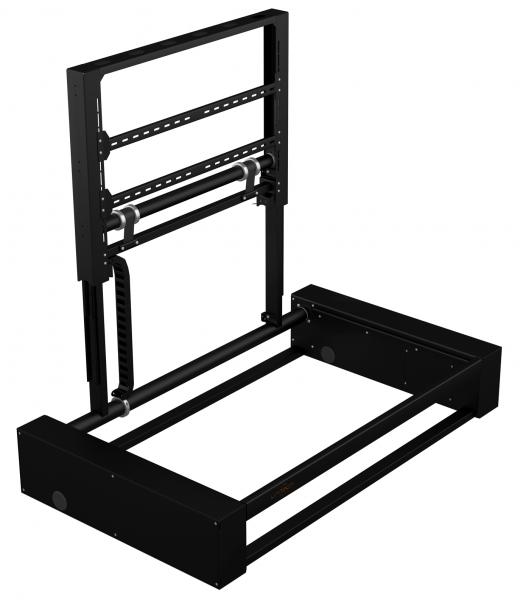

Flat panel table lift, type FPLT V2-500 52-60, with opening angle by 90o and vertical elevation by 500mm. The flat panel is stored in horizontal position.

Features

maximum flat TV dimensions (WxHxD): 1480x900x100mm
maximum load capacity (flat panel+furniture cover): 45kg
lift outer dimensions (WxHxL): 1821x250x1084mm
vertical elevation length up to: 500mm
lift weight: ~84kg
Maximum opening swiveling angle 90 degrees
TV mounting hole pattern: 800x400mm
powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
cable management system included

Specifications

maximum flat TV dimensions (WxHxD): 1480x900x100mm
maximum load capacity (flat panel+furniture cover): 45kg
lift outer dimensions (WxHxL): 1821x250x1084mm
vertical elevation length up to: 500mm
lift weight: ~84kg
Maximum opening swiveling angle 90 degrees
TV mounting hole pattern: 800x400mm
powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
cable management system included
standard control method dry contacts
optional controls: RF remote control, RS 232 control board ports (each one alternative to the other)
