Flat panel table lift FPLT V2 42-50

FPLT V2 42-50

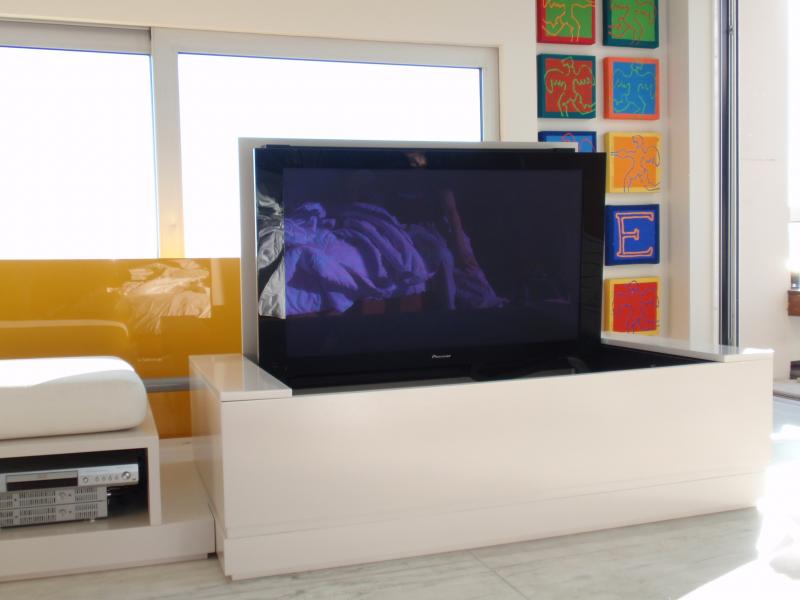

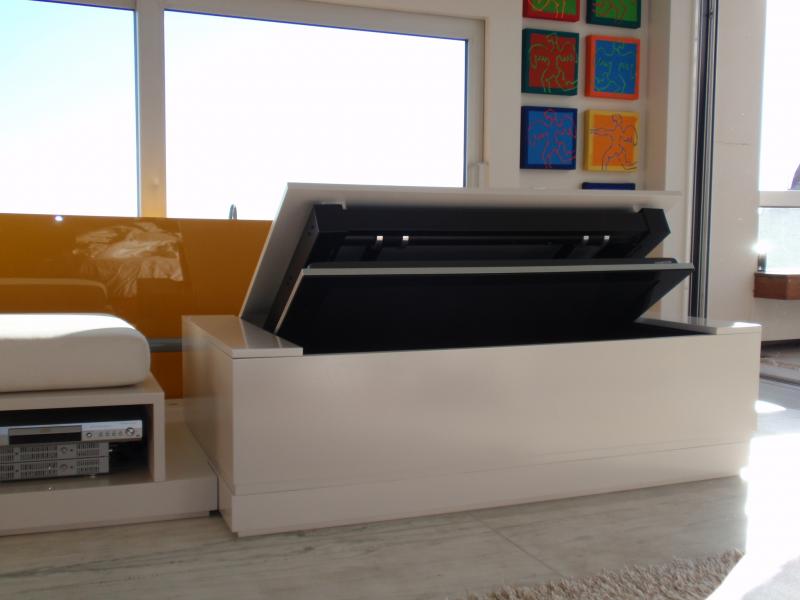

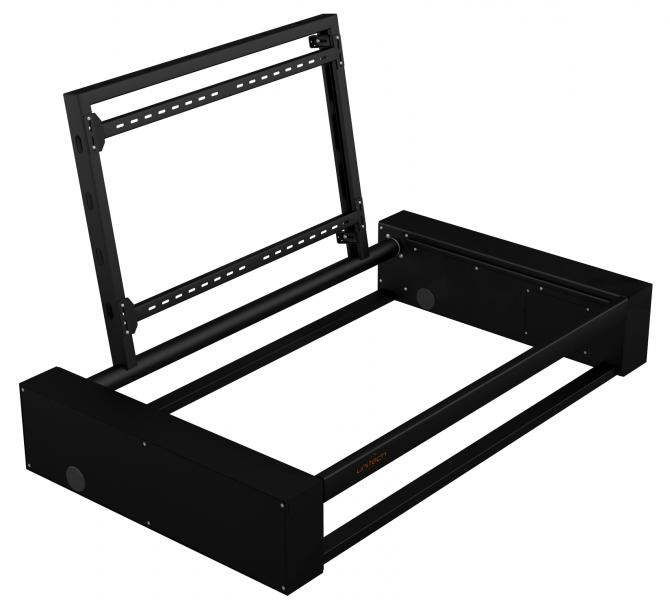

Flat panel table lift, type FPLT V2 42-50, with opening angle by 100o. The flat panel is stored in horizontal position.

Fplt V2 42 50 Main Image
Fplt V2 42 50 Main Image

Features

  •  maximum flat TV dimensions (WxHxD): 1280x755x100mm
  • maximum load capacity (flat panel+furniture cover): 40kg
  • lift outer dimensions (WxHxL): 1621x250x940mm
  • lift weight: ~72kg
  • Maximum swiveling angle 100 degrees
  • TV mounting hole pattern: 800x400mm
  • powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
  • cable management system included

Specifications

  •  maximum flat TV dimensions (WxHxD): 1280x755x100mm
  • maximum load capacity (flat panel+furniture cover): 40kg
  • lift outer dimensions (WxHxL): 1621x250x940mm
  • lift weight: ~72kg
  • Maximum swiveling angle 100 degrees
  • TV mounting hole pattern: 800x400mm
  • powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
  • cable management system included
  • standard control method dry contacts
  • optional controls: RF remote control, RS 232 control board ports (each one alternative to the other)

Manuals

Only for Registered Users
