Flat panel table lift FPLT V2 30-40

FPLT V2 30-40

Flat panel table lift, type FPLT V2 30-40, with opening angle by 100o. The flat panel is stored in horizontal position.

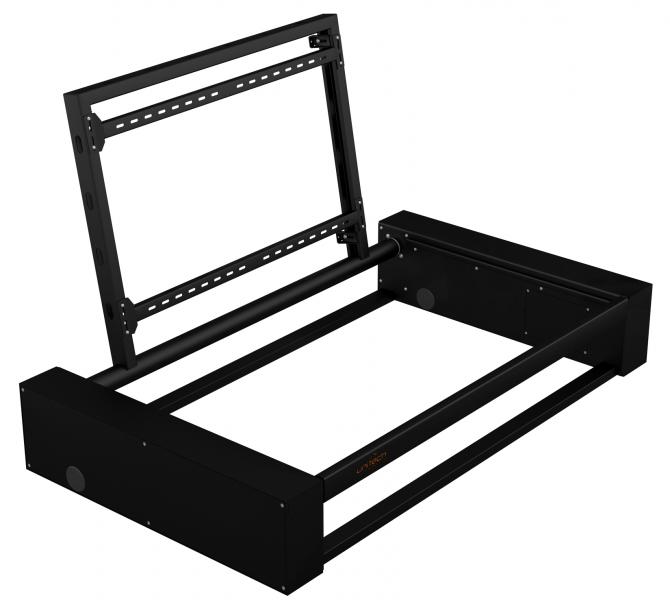

Fplt V2 30 40 Main Image
Fplt V2 30 40 Main Image

Features

  • maximum flat TV dimensions (WxHxD): 1025x620x100mm
  • maximum load capacity (flat panel+furniture cover): 35kg
  • lift outer dimensions (WxHxL): 1366x250x940mm
  • lift weight: ~60kg
  • Maximum swiveling angle 100 degrees
  • TV mounting hole pattern: 600x400mm
  • powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
  • cable management system included

Specifications

  • maximum flat TV dimensions (WxHxD): 1025x620x100mm
  • maximum load capacity (flat panel+furniture cover): 35kg
  • lift outer dimensions (WxHxL): 1366x250x940mm
  • lift weight: ~60kg
  • Maximum swiveling angle 100 degrees
  • TV mounting hole pattern: 600x400mm
  • powder coat coloring of metallic parts in black RAL9005 or RAL9016 white
  • cable management system included
  • standard control method dry contacts
  • optional controls: RF remote control, RS 232 control board ports (each one alternative to the other)

Manuals

Only for Registered Users
