Flat panel slim table lift FPLT S V2-900

FPLT S V2-900

Extra slim flat panel table/furniture lift, model FPLT S V2-900.

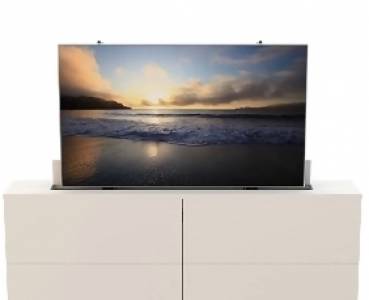

Fplt S V2 900 Main Image
Fplt S V2 900 Main Image

Features

  • maximum elevation height: 860mm
  • maximum load (flat panel+furniture cover): 45kg
  • lift dimentions (HxD): 910x94mm
  • lift width (including cadle chain): 851mm
  • lift weight ~30kg
  • suitable for panels with maximum mounting hole pattern: 720x800mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included

Specifications

  • maximum elevation height: 860mm
  • maximum load (flat panel+furniture cover): 45kg
  • lift dimentions (HxD): 910x94mm
  • lift width (including cadle chain): 851mm
  • lift weight ~30kg
  • suitable for panels with maximum mounting hole pattern: 720x800mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included
  • standard control method wall switch over 230VAC
  • optional controls: RF remote control, dry contacts, RS 232 control board ports (each one alternative to the other)

Manuals

Only for Registered Users
