Flat panel slim table lift FPLT S V2-500

FPLT S V2-500

Extra slim flat panel table/furniture lift, model FPLT S V2-500.

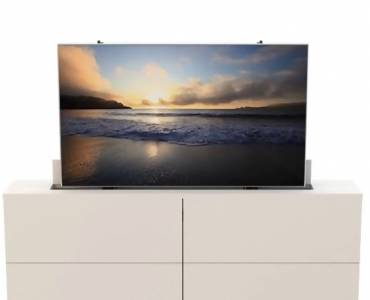

Fplt S V2 500 Main Image
Fplt S V2 500 Main Image

Features

  • maximum elevation height: 460mm
  • maximum load (flat panel+furniture cover) 25kg
  • lift dimentions (HxD): 510x94mm
  • lift width (including cadle chain) 671mm
  • lift weight ~21kg
  • suitable for panels with maximum mounting hole pattern 520x380mm
  • powder coat coloring of metallic parts in black RAL9005

Specifications

  • maximum elevation height: 460mm
  • maximum load (flat panel+furniture cover) 25kg
  • lift dimentions (HxD): 510x94mm
  • lift width (including cadle chain) 671mm
  • lift weight ~21kg
  • suitable for panels with maximum mounting hole pattern 520x380mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included
  • standard control method wall switch over 230VAC
  • optional controls: RF remote control, dry contacts, RS 232 control board ports (each one alternative to the other)

Manuals

Only for Registered Users
