Flat panel slim table lift FPLT S V2-1000

FPLT S V2-1000

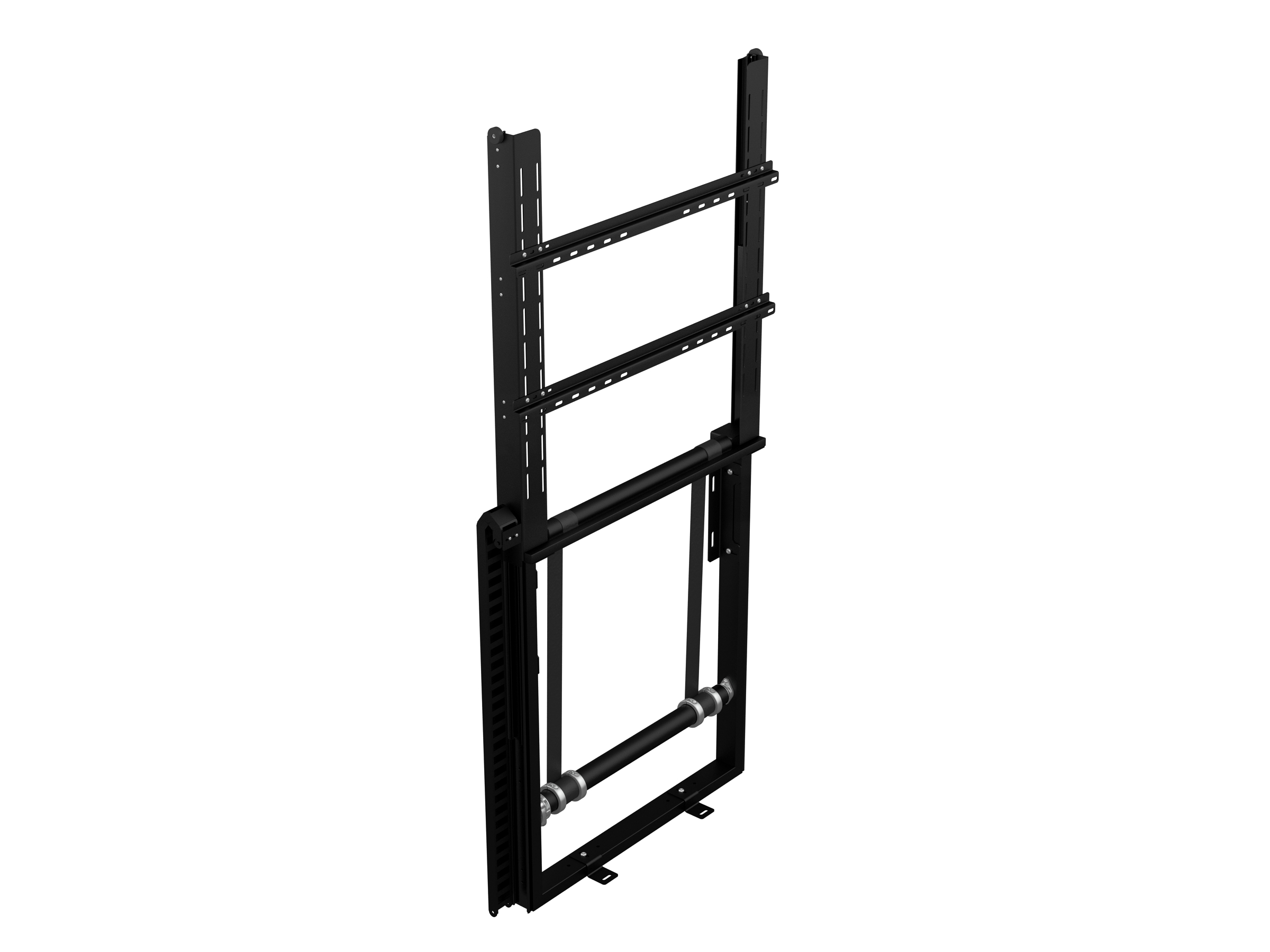

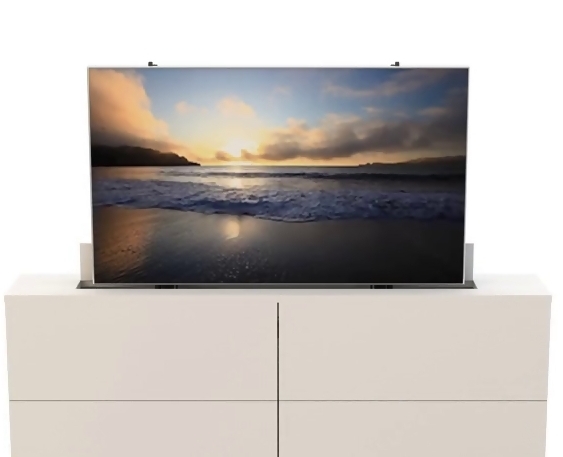

Extra slim flat panel table/furniture pop-up lift, model FPLT S V2-1000.

Fplt S V2 1100 Main Image
Fplt S V2 1100 Main Image

Features

  • maximum elevation height: 950mm
  • maximum load (flat panel+furniture cover):45kg
  • lift dimentions (HxD):101x94mm
  • lift width (including cadle chain):851mm
  • lift weight ~38kg
  • suitable for panels with maximum mounting hole pattern 720x870mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included

Specifications

  • maximum elevation height: 950mm
  • maximum load (flat panel+furniture cover):45kg
  • lift dimentions (HxD):1010x94mm
  • lift width (including cadle chain):851mm
  • lift weight ~38kg
  • suitable for panels with maximum mounting hole pattern 720x870mm
  • powder coat coloring of metallic parts in black RAL9005
  • cable management system included
  • standard control method wall switch over 230VAC
  • optional controls: RF remote control, dry contacts, RS 232 control board ports (each one alternative to the other)

Manuals

Only for Registered Users
