Flat Panel Ceiling Lift FPLC V3-800D

FPLC V3-800D

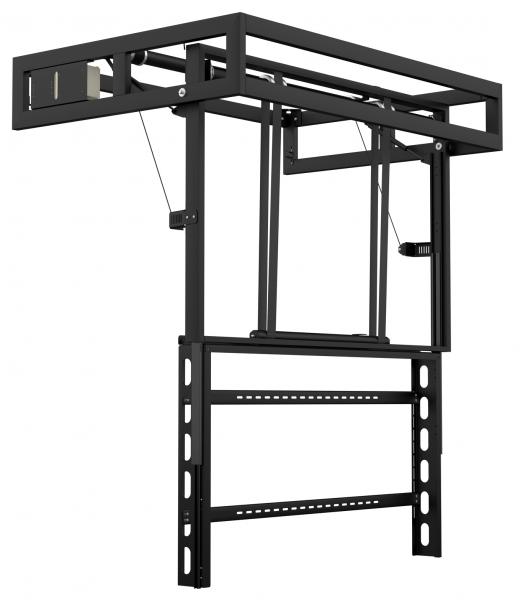

Flat panel ceiling lift, type FPLC V3-800D, with flat panel vertical motion by 800mm. When the lift is in closed position, the flat panel faces downwards.

Fplc V3 800D Main Image
Fplc V3 800D Main Image

Features

  • suitable for panels with max. dimensions 1310x765x100mm
  • vertical run length up to 800mm
  • lift dimensions 1615x1100x270mm
  • maximum load capacity up to 45kg
  • maximum opening angle by 90o
  • when closed, panel faces downwards
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016

It is recommended that the net inner depth of installation false ceiling, is approximately 1-2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.

Specifications

  • suitable for panels with max. dimensions 1310x765x100mm
  • vertical run length up to 800mm
  • lift dimensions 1615x1100x270mm
  • maximum load capacity up to 45kg
  • maximum opening angle by 90o
  • when closed, panel faces downwards
  • powder coat coloring of metallic parts in black RAL9005 or white RAL9016
  • Standard control method embedded dry contacts
  • Optional controls: RF remote control, RS232

It is recommended that the net inner depth of installation false ceiling, is approximately 1-2cm greater than the height of the lift, in order to prevent problems from bumps on the surface of the ceiling or from crooked surfaces.
