Flat Panel Art Cover FPART V4.42-50

FPART V4. 42-50

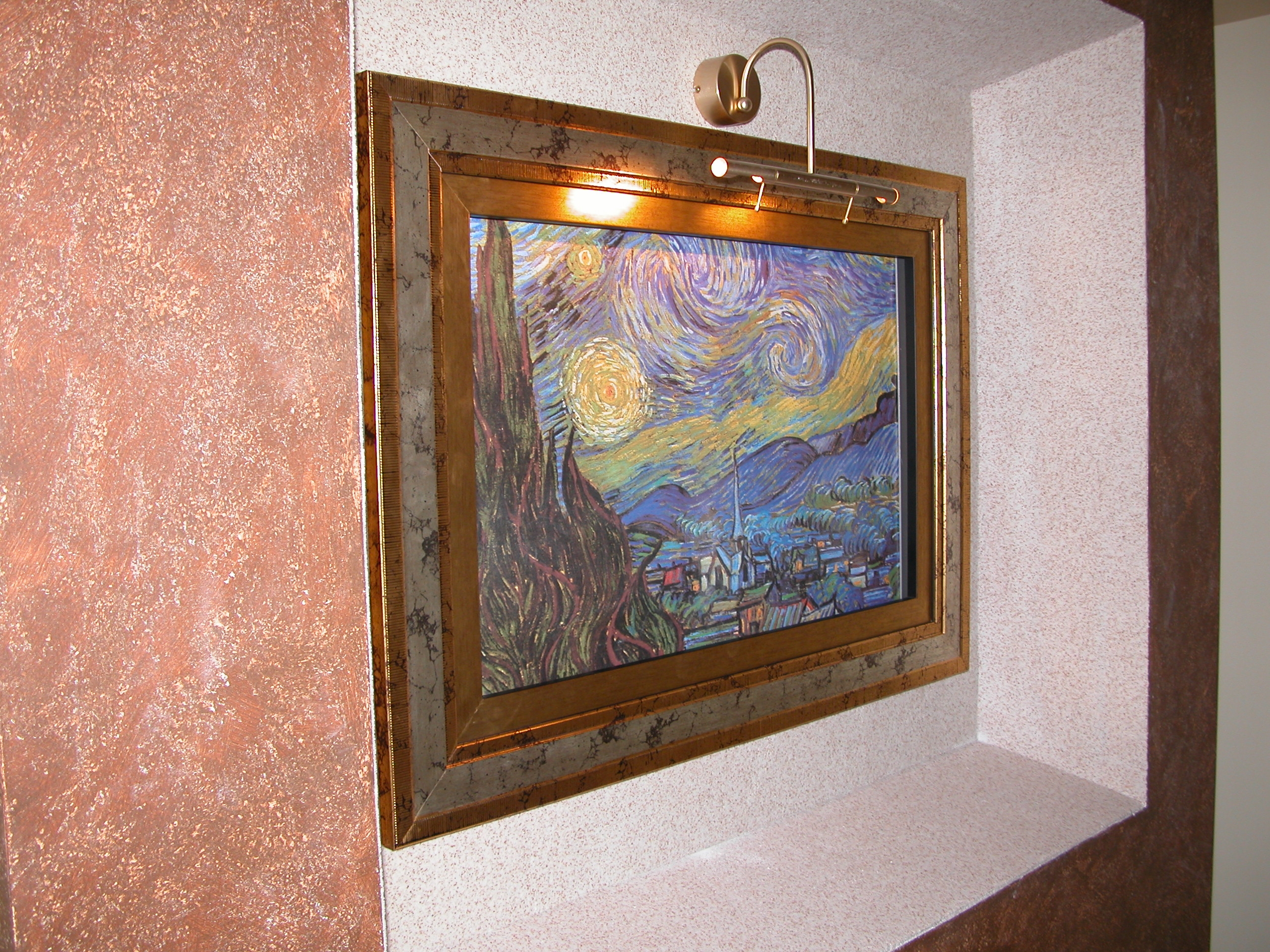

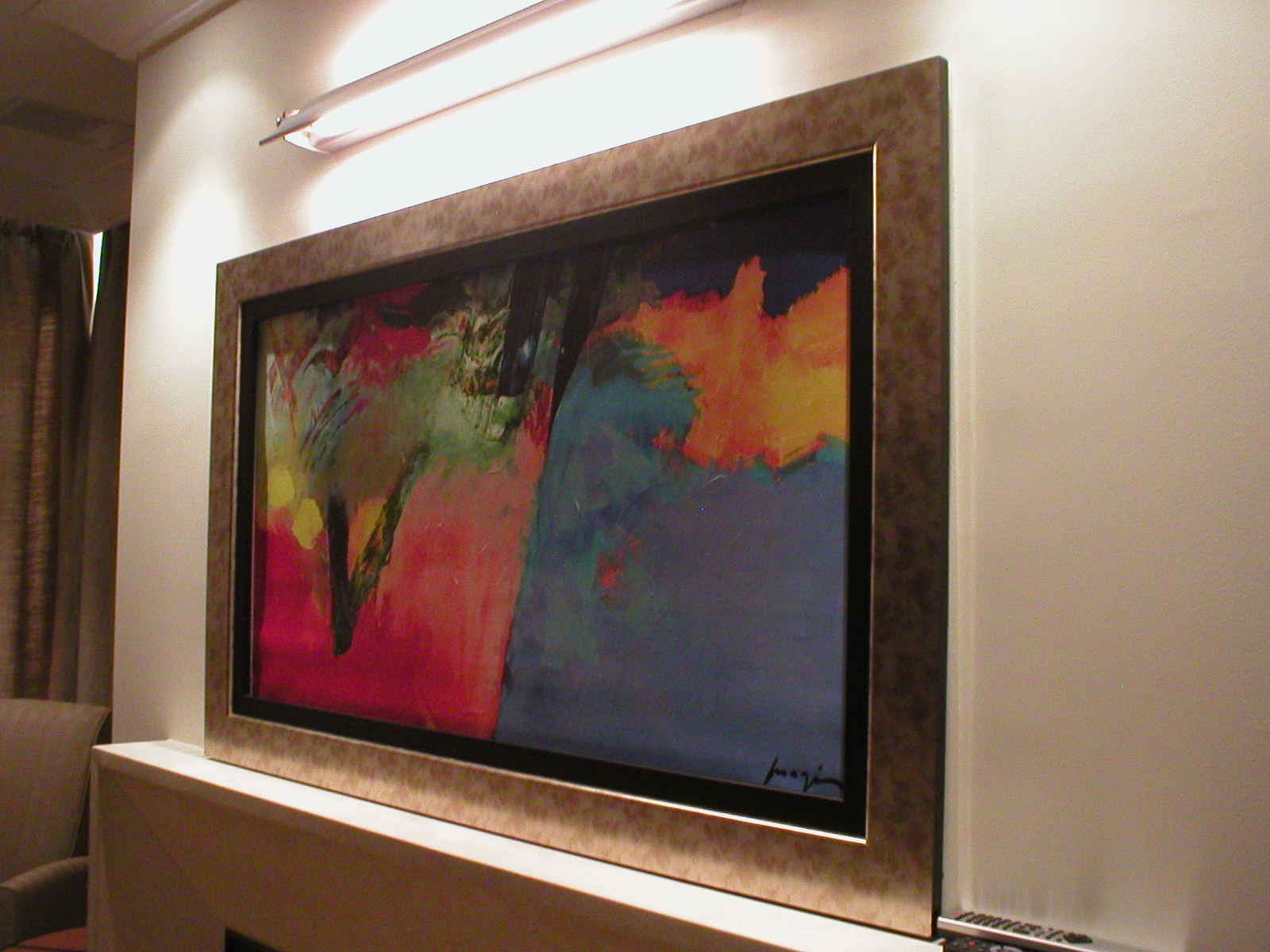

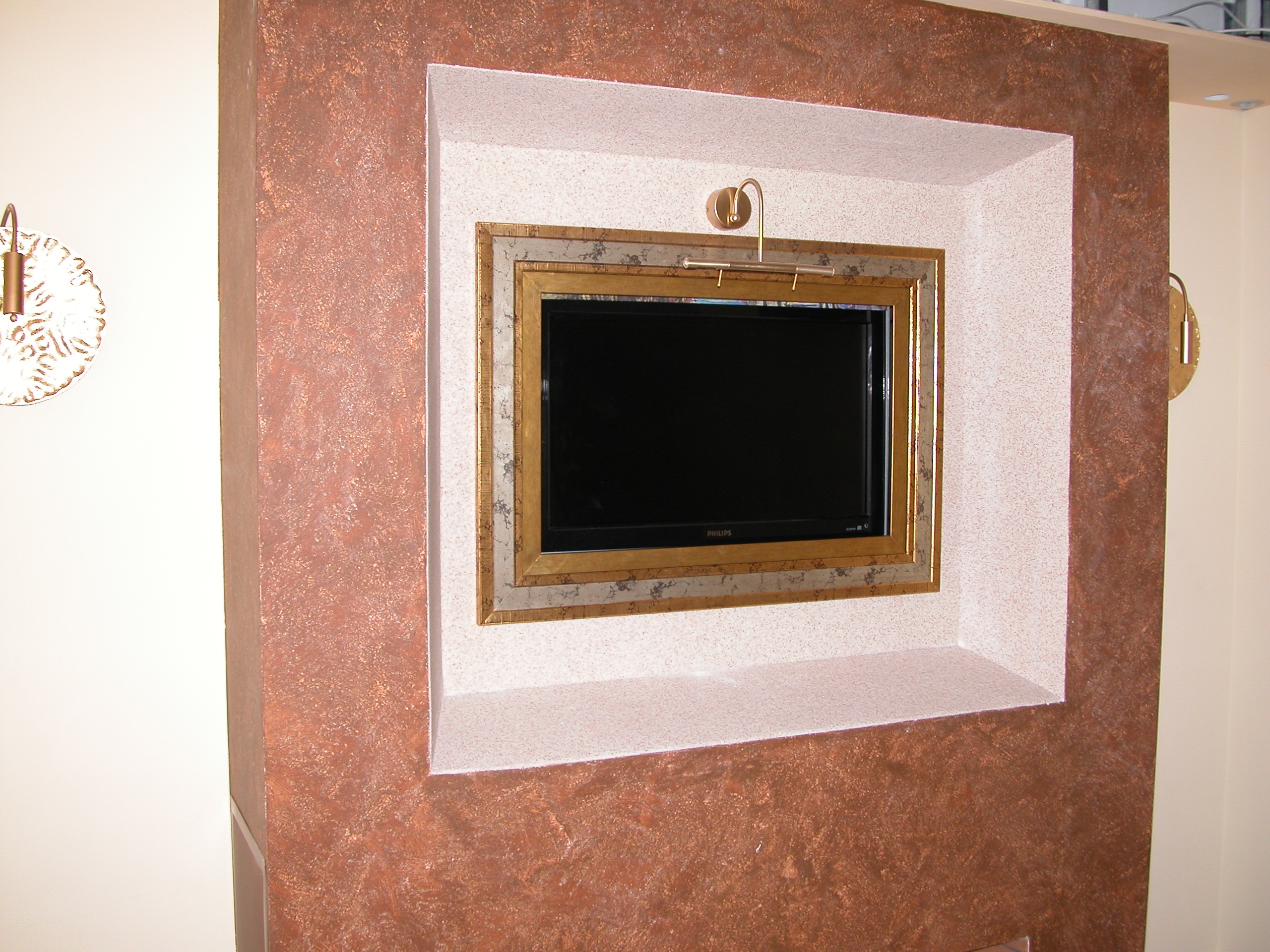

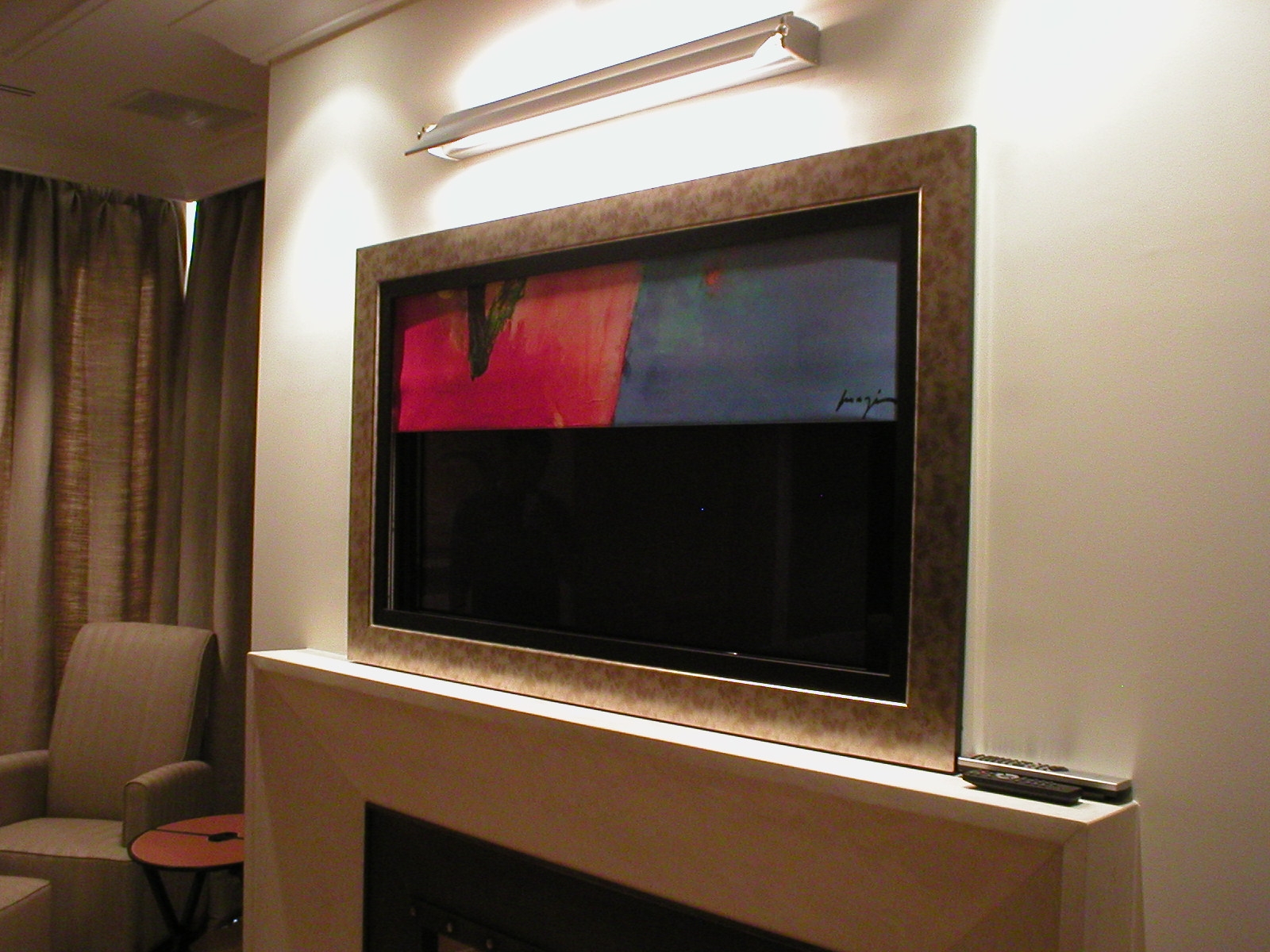

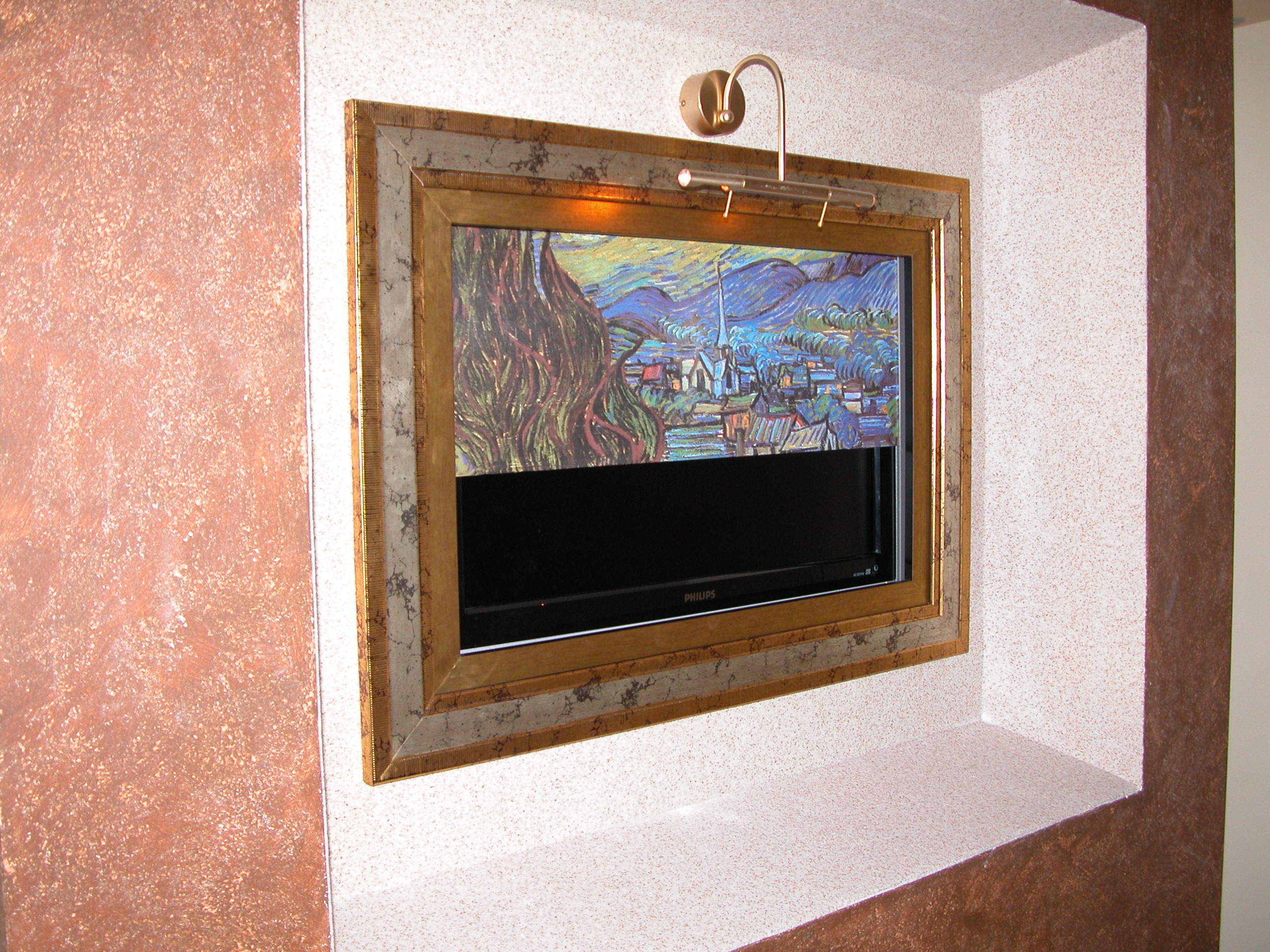

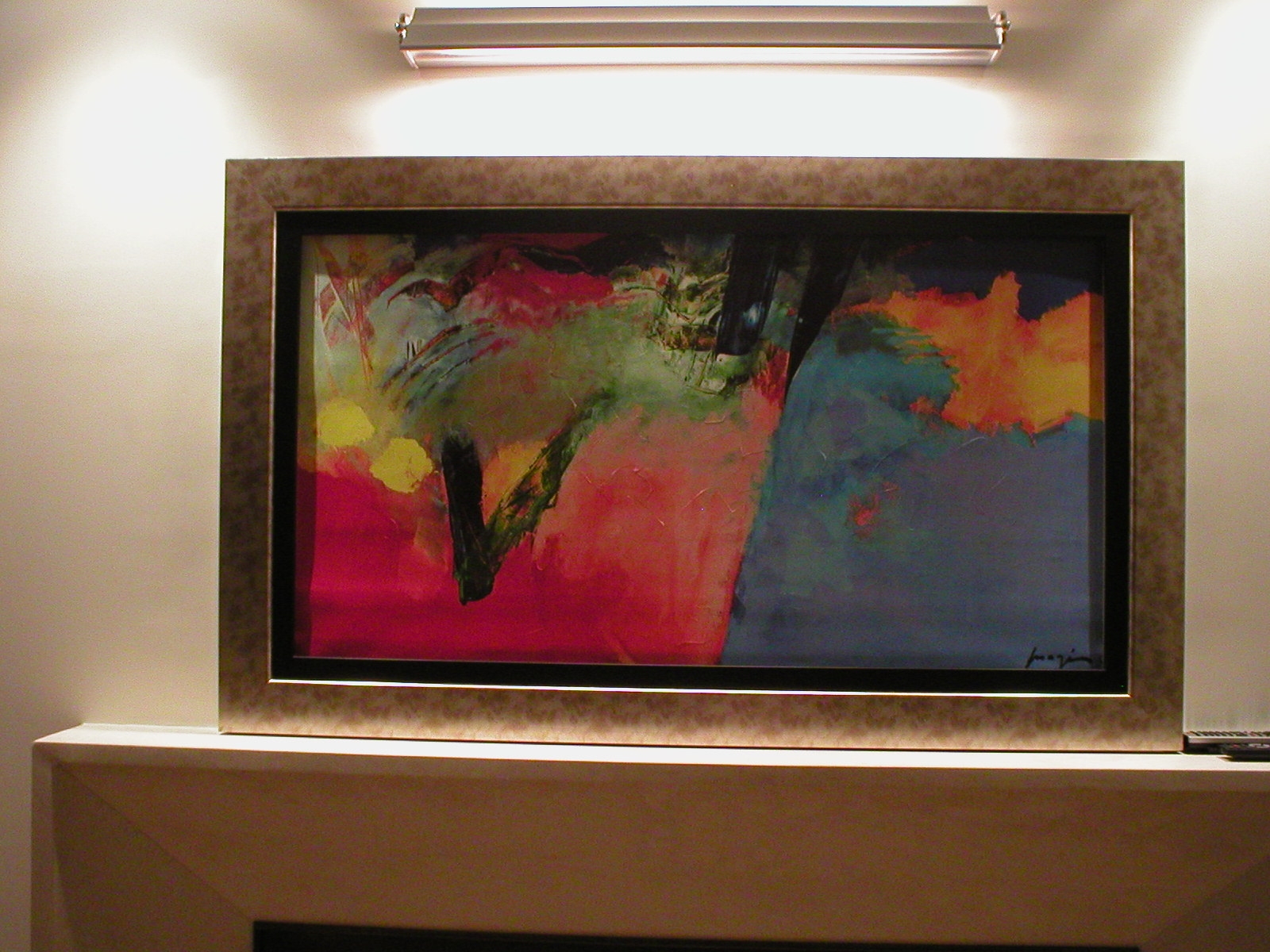

Special mechanism for flat panel concealing with oilprint copy of authentic painting, suitable for panels up to 52", type FPART V4 42-50.

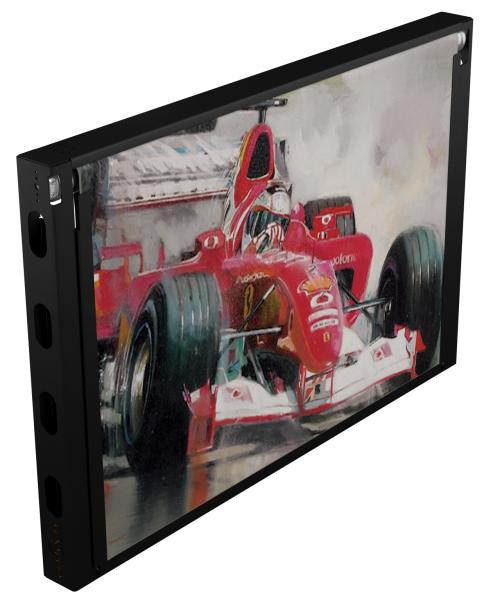

Fpart V4 42 50 Main Image
Fpart V4 42 50 Main Image

Features

  • Maximum flat panel dimensions 1280x755x90mm
  • Mechanism dimensions 1460x920x130mm
  • Mechanism weight ~21kg
  • Dimensions of suggested wooden frame 1500x985x20mm
  • Standard powder coating color of metallic parts RAL 9005 black

* flat panel wall mount is NOT included

Specifications

  • Maximum flat panel dimensions 1280x755x90mm
  • Mechanism dimensions 1460x920x130mm
  • Mechanism weight ~21kg
  • Dimensions of suggested wooden frame 1500x985x20mm
  • Standard powder coating color of metallic parts RAL 9005 black
  • Standard control method wall switch over 230VAC
  • Optional controls: RF remote control, dry contacts, RS232

* flat panel wall mount is NOT included
