Flat Panel Art Cover FPART V4.30-40

FPART V4. 30-40

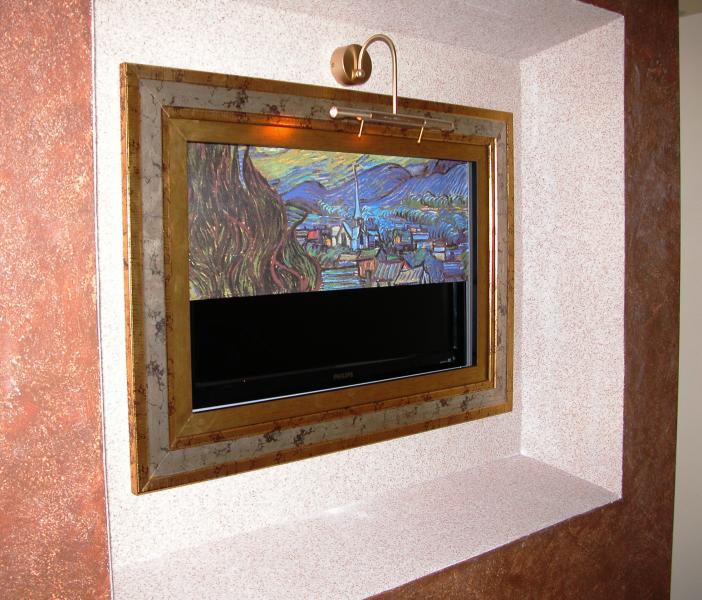

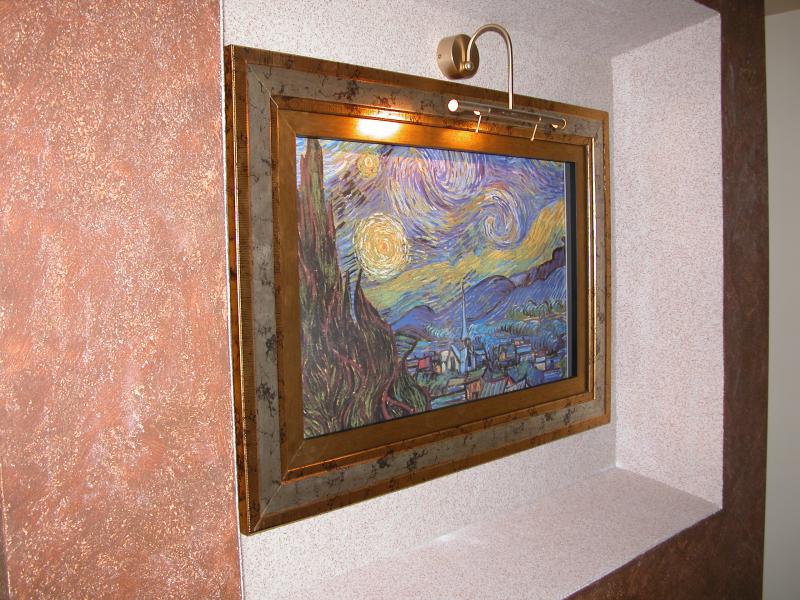

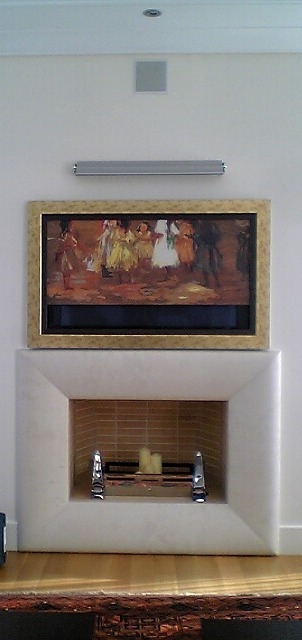

Special mechanism for flat panel concealing with oilprint copy of authentic painting, suitable for panels up to 42", type FPART V4.30-40.

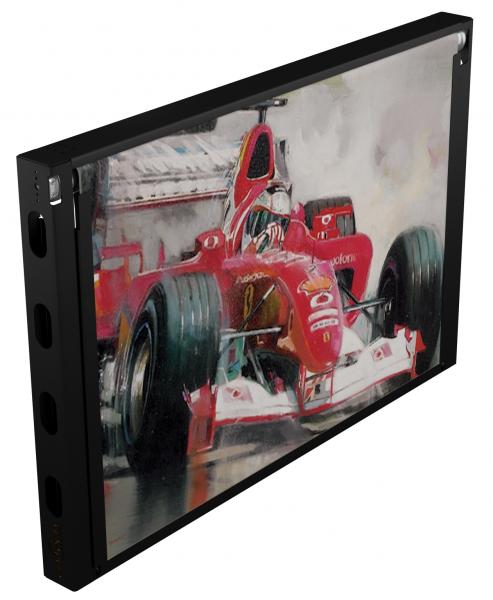

Fpart V4 30 40 Main Image
Fpart V4 30 40 Main Image

Features

  • Maximum flat panel dimensions 1025x640x90mm
  • Mechanism dimensions 1202x805x130mm
  • Mechanism weight ~21kg
  • Dimensions of suggested wooden frame 1245x870x20mm
  • Standard powder coating color of metallic parts RAL 9005 black

* flat panel wall mount is NOT included

Specifications

  • Maximum flat panel dimensions 1025x640x90mm
  • Mechanism dimensions 1202x805x130mm
  • Mechanism weight ~21kg
  • Dimensions of suggested wooden frame 1245x870x20mm
  • Standard powder coating color of metallic parts RAL 9005 black
  • Standard control method wall switch over 230VAC
  • Optional controls: RF remote control, dry contacts, RS232

* flat panel wall mount is NOT included
